Rohner Powder Reclaim Modules are compact, high-efficiency modules
with standard capacities of 4,000 to 12,000 CFM. They are the recommended choice for conveyorized manual and auto application powder coating systems.

Engineered to the highest industry standards, the high-static design of our powder reclaim module incorporates a high filter cloth-to-air ratio, constant digital transducer filter static monitoring, and automatic cycle start/stop back pulse filter cleaning. These factors result in reduction of blower HP and lower compressed air requirements which extends filter life and reduces energy consumption.

STANDARD FEATURES PROVIDED IN ROHNERS POWDER RECOVERY COLLECTORS INCLUDE:

  • 14-12 Gauge powder coated housing
  • Safe quiet operation < 83db @ 5’
  • Industrial UL listed control panel with blower VFDs (Standard)
  • 150lb fluidized reclaim hopper
  • 99.9% efficient 80/20 Nano-Fiber Filters
  • Automatic back pulse cleaning
  • Redundant second stage filters
  • Pre-wired control panel
Rohner-Reclaim-Module0
Rohner-Reclaim-Module1
Rohner-Reclaim-Module3

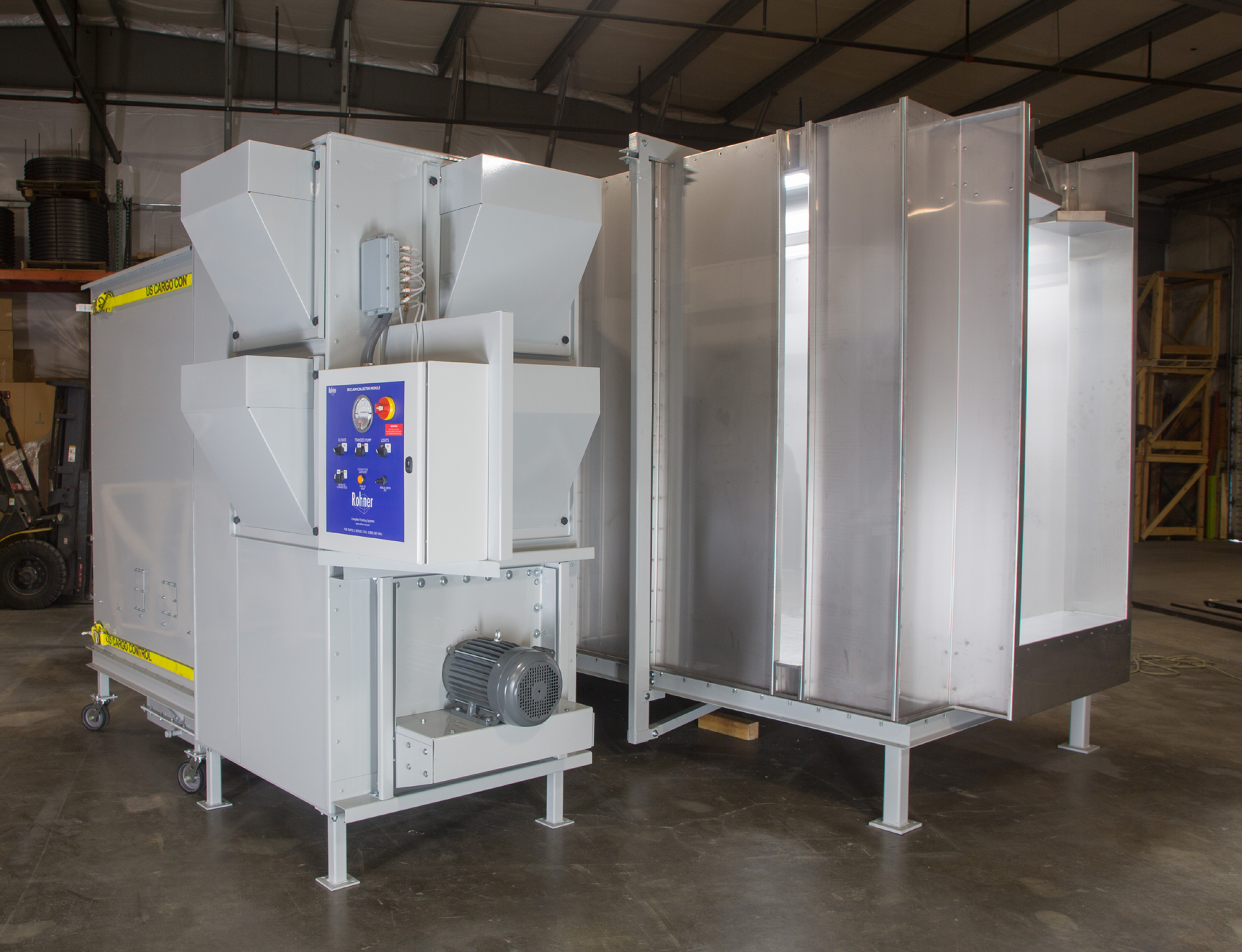

Rohner-Reclaim-Module4
Rohner-Reclaim-Module0
Rohner-Reclaim-Module1
Rohner-Reclaim-Module3
Rohner-Reclaim-Module4

download brochure          quote



INDUSTRIES FOR POWDER RECOVERY COLLECTORS

placeholder

Aerospace
& Defense
placeholder

Manufacturing
& Industrial
placeholder

Heavy Equipment
& Fleet Refinish
placeholder

Marine

SPECIFICATIONS FOR RECLAIM MODULE

Std. Opt Std. Opt
14 gauge housing with 12 gauge structural reinforcement powder coated prior to assembly • 4" MERV 14 final filters with continuous monitor and auto shutdown •
Double urethane sealed factory assembled seams • 12" HEPA final filters •
Direct drive aluminum airfoil, spark resistant blower • UL 508 listed NEMA 12 panel: VFD variable volume, automatic back pulse timer board & lighting contactor (pre-wired) •
TEFC 3-phase, 60hz high efficiency motors • 3/4" Quick acting 24 VDC back pulse solenoids, 90 PSIG Manifold with safety valve •
Roll-out collection drawers • Panel mounted Magnehelic * •
80/20 Nano-fiber 99.9% @ 10 micron efficient cartridge filter • Fluidized recovery hopper, powder dispensing box chute and transfer pump port •
Dual dimple pleated spunbond, 99.9% @ 10 micron efficient cartridge filter • Additional rollaway collector for multi color process •

APPLICATIONS FOR POWDER RECOVERY COLLECTORS

Upgrade

Upgrade

Upgrade your standard spray to waste fiber glass media filter system to Rohner's Powder Recovery Collector, to better capture powder and dust while requiring less maintenance.

Add to

Add to

Rohner's Powder Recovery Collectors are designed to meet the specific air flow and sizing needs to easily add to your existing booth or enclosure.

Replace

Replace

Replace your old and inefficient dust capturing system with Rohner's Powder Recovery Collectors, reducing energy consumptions and prolonging filter life.

SIZING FOR RECLAIM MODULE

MODEL W H D CFM SP    (in WC) Primary Filters Air:Cloth* Ratio Final Filters MOTOR HP Compressed Air** (SCFM @ 90PSI)
RM6 HOUSING
RM4000 10'-7" 8'-7" 3'-8" 4000 5 8 2.6:1 4 7.5 16
RM5000 10'-7" 8'-7" 3'-8" 5000 5 8 3.3:1 4 7.5 16
RM6000 10'-7" 8'-7" 3'-8" 6000 5 8 3.9:1 4 10 16
RM9 HOUSING
RM7000 11'-0" 8'-7" 4'-9" 7000 5 12 2.8:1 5 10 24
RM8000 11'-0" 8'-7" 4'-9" 8000 5 12 3.1:1 5 10 24
RM9000 11'-0" 8'-7" 4'-9" 9000 5 12 3.5:1 5 10 24
RM12 HOUSING
RM10000 11'-0" 11'-3" 4'-9" 10000 5 16 3.9:1 6 15 32
RM11000 11'-0" 11'-3" 4'-9" 11000 5 16 2.7:1 6 15 32
RM12000 11'-0" 11'-3" 4'-9" 12000 5 16 2.95:1 6 15 32
GET A QUOTE

Collectors are constructed with heavy gauge steel, laser cut and formed for factory nut and bolt assembly. Each component is powder coated prior to assembly. All seams are double sealed with urethane sealant for a dust tight seal.

High quality aluminum 12 blade airfoil wheels provide maximum efficiency and low sound. Blowers are powered by a premium efficiency TEFC 3-phase motor.

For more information on the standard features and available options of our Powder Recovery Collectors, please contact Rohner and someone on our staff will help.
