Batch Cartridge Recovery Booth

Rohner Batch Cartridge Recovery Booths are designed with optimal airflow for powder containment and application efficiency, and are the perfect solution for bringing the advantages of Batch Non-Reclaim Powder Booth to your powder coating process. Our standard powder coating booths control air uniformly through all the booth openings, recirculating the air back into the facility so no makeup air is required, and collecting excess powder through the two-stage filters of the collector modules. Rohner Batch Cartridge Recovery Booths provide a superior application environment for small job shop runs or large production runs, and are designed for manual gun usage.

STANDARD FEATURES PROVIDED IN ROHNER BATCH CARTRIDGE RECOVERY BOOTHS INCLUDE:

Premium 18 gauge G90 Galvanized steel construction
AMCA certified aluminum blade fans with TEFC motor standard
UL listed color correct fluorescent light fixtures
20 x 20 industry standard filters
100 F.P.M. standard booth velocity
Welded tube steel product doors
Easy nut & bolt assembly with 3D exploded view drawings

SPECIFICATIONS FOR BATCH NON-RECOVERY BOOTHS

	Std.	Opt		Std.	Opt
18 Gauge galvanized construction	•		Filtered product doors		•
Powder coated white finish		•	HEPA final filters		•
Class I Div. II sealed inside access light fixtures with color correct lamps	•		UL 508 listed NEMA 12 panel: VFD variable volume, automatic back pulse timer board & lighting contactor	•

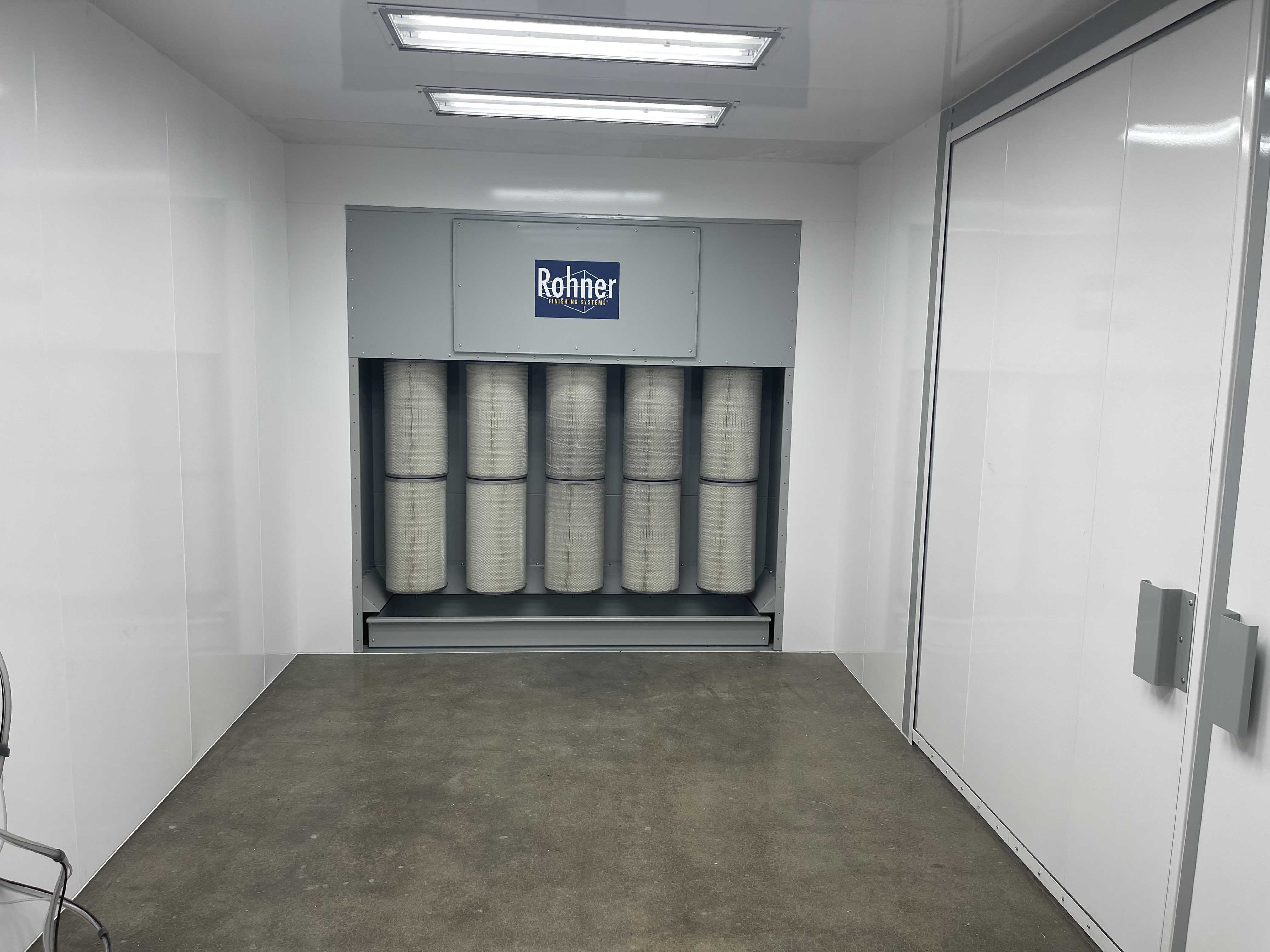

Collector Module with cartridge filters, final filters, and back pulse solenoids	•		Fluidized recovery hopper, powder dispensing box chute and transfer pump port		•
High static Collector Module		•	3' x 7' Access door with 18" x 24" tempered glass window		•

APPLICATIONS FOR BATCH CARTRIDGE RECOVERY BOOTH

Electrical Enclosures

Cartridge recovery booths are often used by electrical control panel enclosure manufactures to recycle a common powder color, reducing waste.

Aftermarket automotive accessories

Aftermarket automotive manufacturers benefit from the high capacity and reclaim performance of cartridge collector powder booths.

Powder Coat Job Shops

Powder coat job shops know quality, Rohner CM collector modules are industry know for high quality, long filter life and low noise operation.

MODEL	W	H	D	W	H	D	Light Fixtures	Collector Module/QTY	CFM. (Min.-Max)
BPB-6-8-6	6'-0"	8'-0"	6'-0"	6'-4"	8'-2"	9'-0"	1	(1) CM6000	4,000-6,000
BPB-6-10-6	6'-0"	10'-0"	6'-0"	6'-4"	10'-2"	9'-0"	1	(1) CM6000	4,000-6,000
BPB-8-8-6	8'-0"	8'-0"	6'-0"	8'-4"	8'-2"	9'-0"	1	(1) CM6000	4,000-6,000
BPB-8-10-6	8'-0"	10'-0"	6'-0"	8'-4"	10'-2"	9'-0"	1	(1) CM6000**	4,000-6,000
BPB-10-8-6	10'-0"	8'-0"	6'-0"	10'-4"	10'-2"	9'-0"	2	(1) CM6000**	4,000-6,000
BPB-10-10-6	10'-0"	10'-0"	6'-0"	10'-4"	10'-2"	9'-0"	2	(1) CM10000	7,000-10,000
BPB-12-8-6	12'-0"	8'-0"	6'-0"	12'-4"	8'-2"	9'-0"	2	(1) CM10000	7,000-10,000
BPB-12-10-6	12'-0"	10'-0"	6'-0"	12'-4"	10'-2"	9'-0"	2	(2) CM6000	8,000-12,000

Pre-wired , NEMA 12 dust-tight industrial control panel reduces install cost and includes panel-mounted variable volume adjustment for optimizing airflow and transfer efficiency. Automatic back pulse cleaning of our powder spray booths ensures consistent airflow and extends filter life, and our automatic clogged-filter shutdown ensures a safe environment. Rohner Batch Cartridge Recovery Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. Consult your local authority having jurisdiction for additional requirements before purchasing.

For more information on the standard features and available options of ourBatch Cartridge Recovery Booths, please contact Rohner and someone on our staff will help.
