MANUAL WASH ENCLOSURES

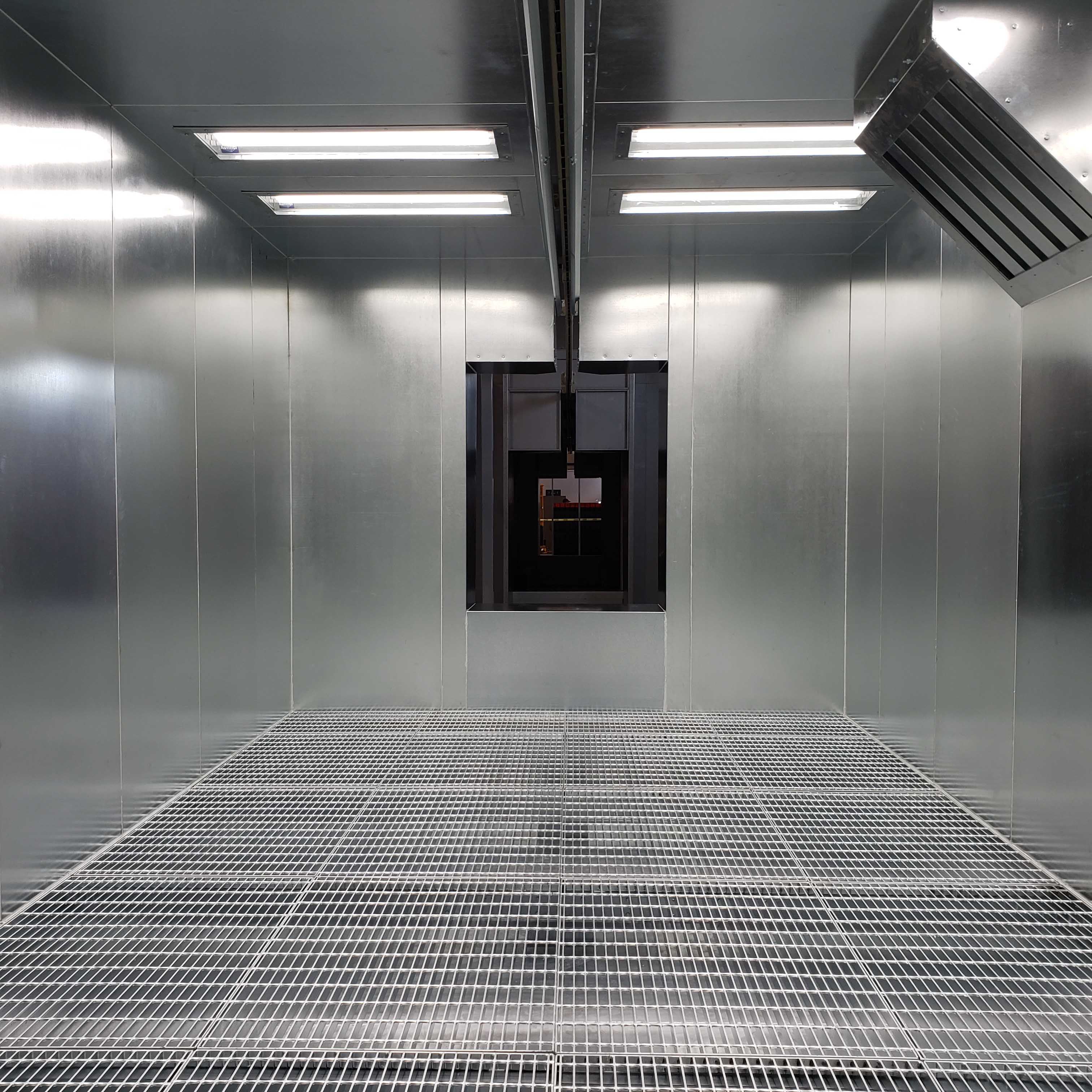

Rohner Industrial Wash Enclosures provide a complete containment solution for your parts cleaning needs. Wash Enclosures protect the environment from harsh cleaning chemicals. That are common to cleaning and pretreatment processes found in many paint shops. The sloped drain pan contains chemical process solutions.

STANDARD FEATURES PROVIDED IN ROHNER MANUAL WASH ENCLOSURES INCLUDE:

  • Baffled exhaust plenum with moisture eliminating mesh filters
  • Aluminum mesh intake filters
  • UL listed moisture rated light fixtures.
  • UL 508 listed control panel
  • Non-fused service disconnect
  • NEMA 12 Industrial Enclosure
  • Motor protection
  • 12" containment
  • Auto Booth Pressure/Velocity Control

Rohner Paint Spray Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. View Requirements.

SPECIFICATIONS FOR MANUAL WATER WASH

Std. Opt Std. Opt
120V/240V Single phase ODP motor with thermal overload protection 1 1/2" Drain fitting with plug
UL listed manual motor rated 120/240V single phase, 2-pole switch 120V/240V transfer pump, floats and piping
UL 508, NEMA 12 Industrial Control Panel with Non-fused disconnect, motor starter & overloads and lighting contactor for 208-460V 3-Phase applications Corrosive Resistant construction includes 304 stainless steel construction with fiberglass grating
VFD (Variable Frequency Drive) with NEMA 1 Kit 1000 Gallon Polyethylene Storage Tank
12" Tall galvanized Welded Containment pan with galvanized grated decking rated for 200 P.S.F. Raised containment floor product ramps decked with 1/4" plate, rated for 200 P.S.F. & Personnel Door Landing
Infloor Concrete Sump

APPLICATIONS FOR MANUAL WATER WASH

SIZING FOR MANUAL WATER WASH

MODEL WHDWHDExhaust Fan SizeLight FixturesH.P.CFM
IWE2100- 8-8-98'-0"8'-0"9'-0"12'-0"10'-0"13'-0"18"20.52100
IWE2100-8-8-128'-0"8'-0"12'-0"12'-0"10'-0"16'-0"18"20.52100
IWE2100-8-8-158'-0"8'-0"15'-0"12'-0"10'-0"19'-0"18"30.52100
IWE2100-10-10-910'-0"10'-0"9'-0"14'-0"12'-0"13'-0"18"30.52100
IWE2100-10-10-1210'-0"10'-0"12'-0"14'-0"12'-0"16'-0"18"30.52100
IWE2100-10-10-1510'-0"10'-0"15'-0"14'-0"12'-0"19'-0"18"40.52100
IWE2100-12-12-912'-0"12'-0"9'-0"16'-0"14'-0"13'-0"18"40.52100
IWE2100-12-12-1212'-0"12'-0"12'-0"16'-0"14'-0"16'-0"18"50.52100
IWE2100-12-12-1512'-0"12'-0"15'-0"16'-0"14'-0"19'-0"18"60.52100

Optional heated Makeup Air Units (M.A.U) can be added with high temperature bake cycle and energy saving recycle. AMCA certified fans with EPACT compaliant TEFC motors are standard. Fans have remote bearing lubrication, aluminum spark resistant blades, and heavy duty powder coated housings. Rohner Paint Spray Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. Consult your local authority having jurisdiction for additional requirements before purchasing.

For more information on the standard features and available options of our Crossdraft Paint Spray Booths, please download the Crossdraft Spray Booths Brochure or contact Rohner and someone on our staff will help.
