Rohner Side Downdraft (or Semi-Down) Paint Spray Booths provide a great solution for bringing downdraft airflow into your facility. Our standard side downdraft spray booth draws non-pressurized fresh filtered air, from a full ceiling supply plenum, which then flows vertically over the entire work area and out through the side wall exhaust plenum - creating a customized airflow. Rohner side-downdraft paint spray booths can be designed for drive-in and back-out applications or for flow-through production lines, and offer an ideal option for large-capacity refinishing.

STANDARD FEATURES PROVIDED IN ROHNER SIDE DOWNDRAFT PAINT SPRAY BOOTHS INCLUDE:

  • Premium 18 gauge G90 galvanized steel construction
  • AMCA certified aluminum blade fans with TEFC motor standard
  • UL listed color correct fluorescent light fixtures
  • 20 x 20 Industry standard filters
  • 200# Sq./ft. steel pit grating
  • Product doors
  • Easy nut & bolt assembly with 3D exploded view drawings

Rohner Paint Spray Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. View Requirements.

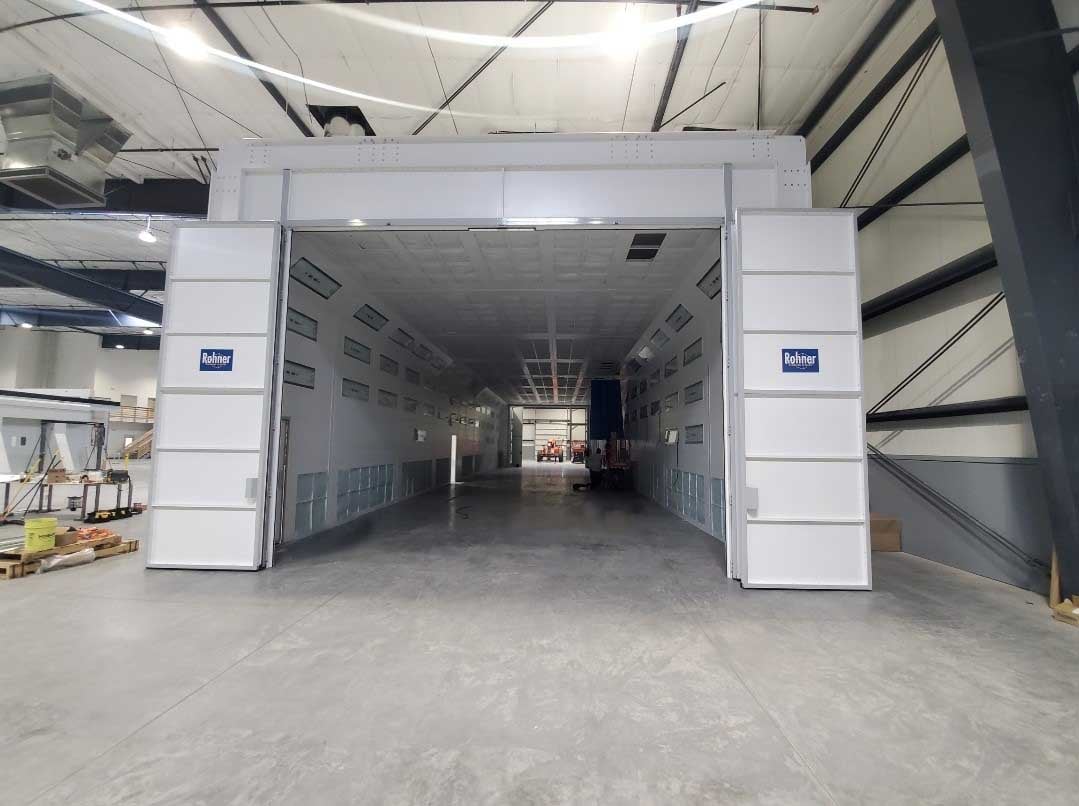

Rohner - Side Semi Down Draft

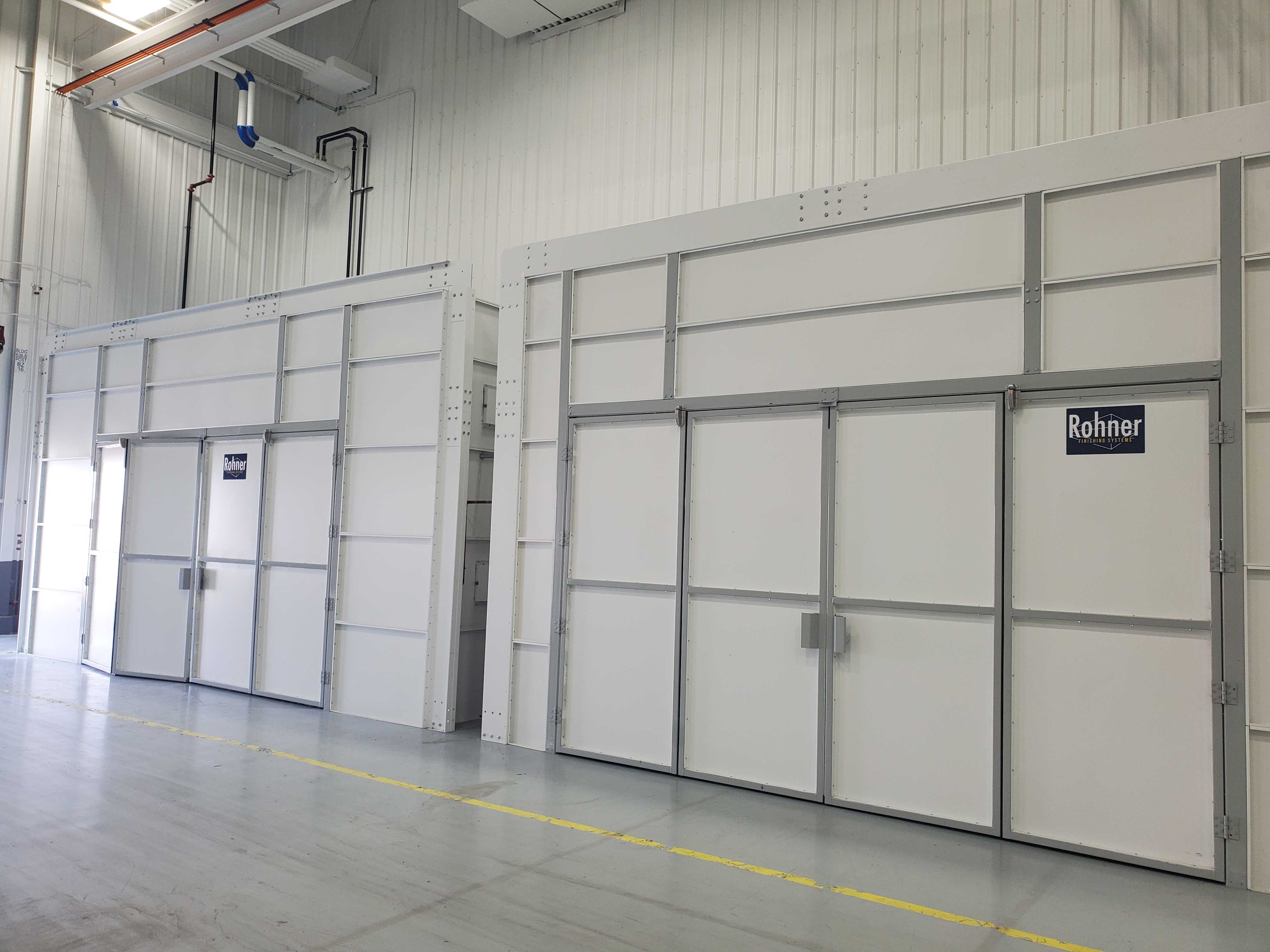

Rohner - Side x Side Booths
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
Rohner - Side Semi Down Draft
Rohner - Side x Side Booths
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT
SIDE DOWNDRAFT

INDUSTRIES FOR SIDE DOWNDRAFT SPRAY BOOTHS

placeholder

Aerospace
& Defense
placeholder

Manufacturing
& Industrial
placeholder

Cerakote
placeholder

Transit Bus
& Rail
placeholder

Heavy Equipment
& Fleet Refinish
placeholder

Marine

SPECIFICATIONS FOR SIDE DOWNDRAFT SPRAY BOOTHS

Std. Opt Std. Opt
18 Gauge galvanized construction • NESHAP compliant multistage filter system •
20"x 20" exhaust filter frames with wire grids • 3'x7' Personnel access door with 18"x 24" tempered glass window •
Class I Div. II sealed inside access light fixtures with color correct lamps • Quick Change filter roller system •
Spark resistant tube axial fan w/ TEFC motor • 36"x 44" Premium supply filter roller system •
High static exhaust fan • Dual entry (drive through) product doors •
Powder coated white finish • Heated makeup air unit (M.A.U.) •

APPLICATIONS FOR SIDE DOWNDRAFT SPRAY BOOTHS

Aircraft finishing

Aircraft finishing

Side Downdrafts are often used for aircraft finishing for its effective heat dispersion and overspray control with adequate airflow in large spaces.

Large Equipment

Large Equipment

Side Downdrafts are a good option for receiving the benefits of a Full Downdraft without having a pit structure rated for heavy equipment.

Automotive Refinishing

Automotive Refinishing

Side Downdrafts are a common choice for smaller automotive refinishing shops when a pit is not a viable solution for the location.

SIZING FOR SIDE DOWNDRAFT SPRAY BOOTHS

MODEL W H D W H D Light Fixtures Intake Filters Exhaust Filters Exhaust Fan Sized at 100FPM @ 1/2" S.P.
ISD-14-10-26 14'-0" 10'-0" 25'-11" 19'-4" 13'-2" 26'-3" 10 60 44 (2) 30" 3hp- 18,200cfm
ISD-14-10-30 14'-0" 10'-0" 29'-11" 19'-4" 13'-2" 30'-3" 11 80 52 (2) 30" 3hp- 21,000cfm
ISD-14-12-26 14'-0" 12'-0" 29'-11" 19'-4" 15'-2" 26'-3" 12 60 44 (2) 30" 3hp- 18,200cfm
ISD-14-12-30 14'-0" 12'-0" 23'-10" 19'-4" 15'-2" 30'-3" 13 80 52 (2) 30" 3hp- 21,000cfm
ISD-16-16-32 16'-0" 16'-0" 31'-11" 21'-4" 19'-2" 32'-3" 21 96 56 (2) 36" 5hp- 25,600cfm
ISD-16-16-40 16'-0" 16'-0" 40'-0" 21'-4" 19'-2" 40'-4" 26 120 64 (4) 30" 3hp- 32,000cfm
ISD-16-16-48 16'-0" 16'-0" 48'-1" 21'-4" 19'-2" 48'-5" 31 144 80 (4) 30" 3hp- 38,400cfm
ISD-16-16-60 16'-0" 16'-0" 60'-3" 21'-4" 19'-2" 60'-7" 36 180 104 (4) 36" 5hp- 48,000cfm
ISD-18-16-32 18'-0" 16'-0" 31'-11" 23'-4" 19'-2" 32'-3" 24 112 56 (2) 36" 5hp- 28,800cfm
ISD-18-16-40 18'-0" 16'-0" 40'-0" 23'-4" 19'-2" 40'-4" 29 140 90 (4) 30" 3hp- 36,000cfm
ISD-18-16-48 18'-0" 16'-0" 48'-1" 23'-4" 19'-2" 48'-5" 35 168 106 (4) 36" 3hp- 43,200cfm
ISD-18-16-60 18'-0" 16'-0" 60'-3" 23'-4" 19'-2" 60'-7" 44 210 138 (4) 36" 5hp- 54,000cfm
ISD-20-16-32 20'-0" 16'-0" 31'-11" 25'-4" 19'-2" 32'-3" 26 128 78 (2) 42" 5hp- 32,000cfm
ISD-20-16-40 20'-0" 16'-0" 40'-0" 25'-4" 19'-2" 40'-4" 32 160 96 (4) 36" 3hp- 40,000cfm
ISD-20-16-48 20'-0" 16'-0" 48'-1" 25'-4" 19'-2" 48'-5" 39 192 120 (4) 36" 5hp- 56,000cfm
ISD-20-16-60 20'-0" 16'-0" 60'-3" 25'-4" 19'-2" 60'-7" 48 240 156 (4) 36" 5hp- 60,000cfm
GET A QUOTE

High-performance side downdraft booths provide optimal airflow and are the preferred booth style for achieving an ultra-high quality paint finish. Upgrade to a Rohner exclusive supply blanket filter rack. Intake filter rack comes with a roll-in pinch strip, guaranteeing a 100% seal every time. Rohner Paint Spray Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements Consult your local authority having jurisdiction for additional requirements before purchasing.

For more information on the standard features, a listing of models and dimensions, and available options of our Side Downdraft (Semi-Down) Spray Booths, please download the Downdraft Spray Booths Brochure or contact Rohner and someone on our staff will help.
