Rohner Batch Powder and Batch Liquid Ovens offer an economical, modular heat technology solution for your preheating, baking, curing and drying needs. Whether you are curing aerospace parts at 140°, powder coated parts at 400°, or specialty coatings up to 500°, we pre-engineer designs to minimize lead times and maximize cost value.



STANDARD FEATURES PROVIDED IN ROHNERS BATCH OVENS INCLUDE:

  • 4" thick, 20 gauge aluminized panels insulated with 4 lb. density mineral wool, and perforated grooved seams
  • Gas-fired 25:1 turn-down process heater for precise control
  • UL508 industrial control panel with remote HMI touchscreen user interface
  • Welded formed steel product doors and heavy-duty hinges with bearings
  • 14-10 gauge aluminized cold formed sheet steel frames, no field welding required
  • Mixed airflow with filtered supply air
  • Superior temperature uniformity

Rohner Paint Spray Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. View Requirements

Rohner Batch Oven

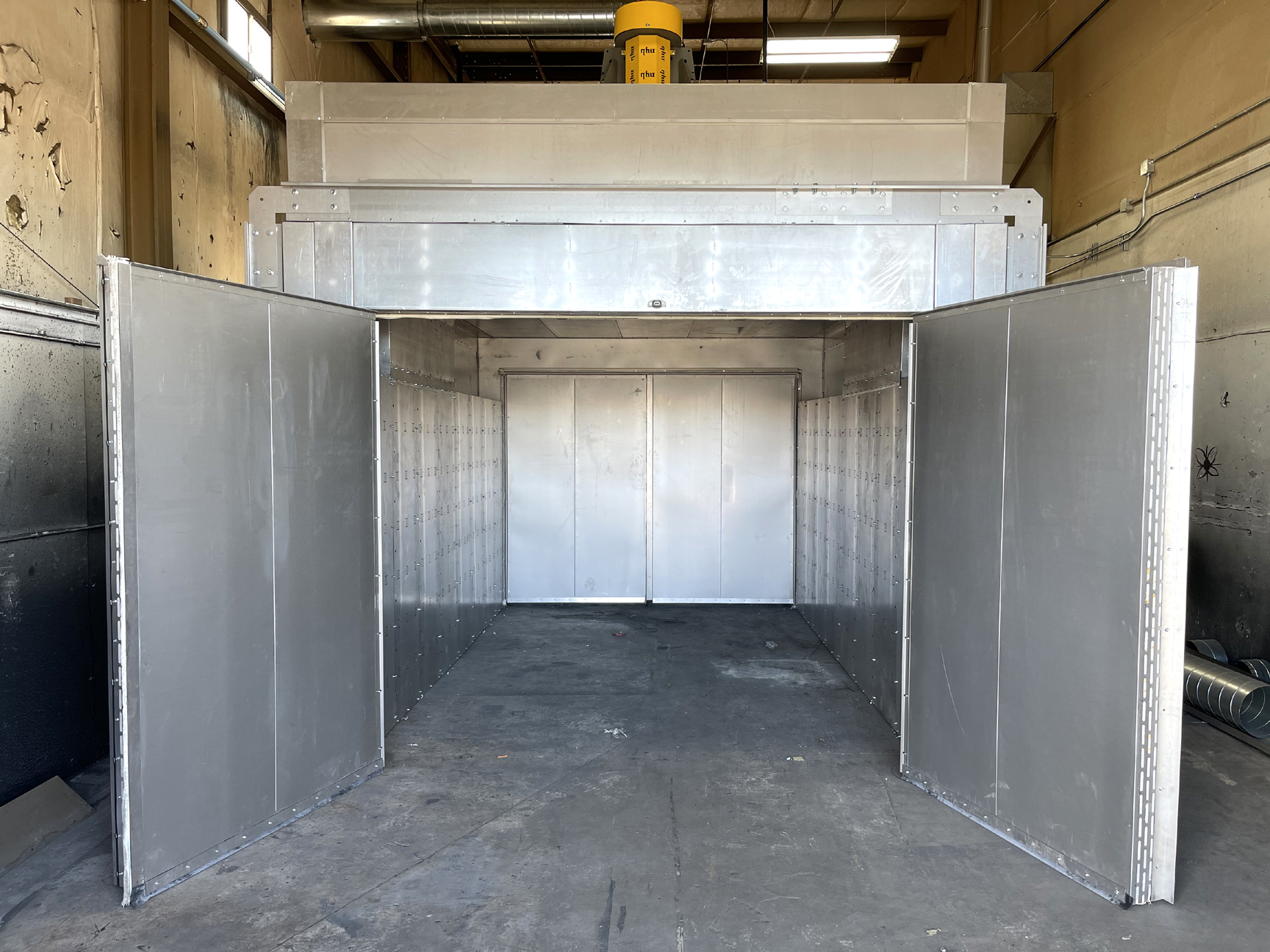

rohner-batch-oven1-1

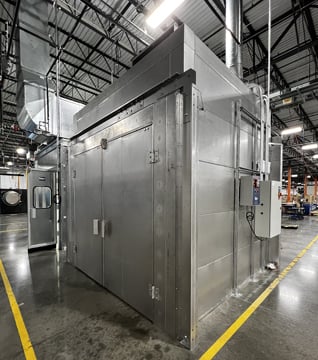

rohner-batch-oven222

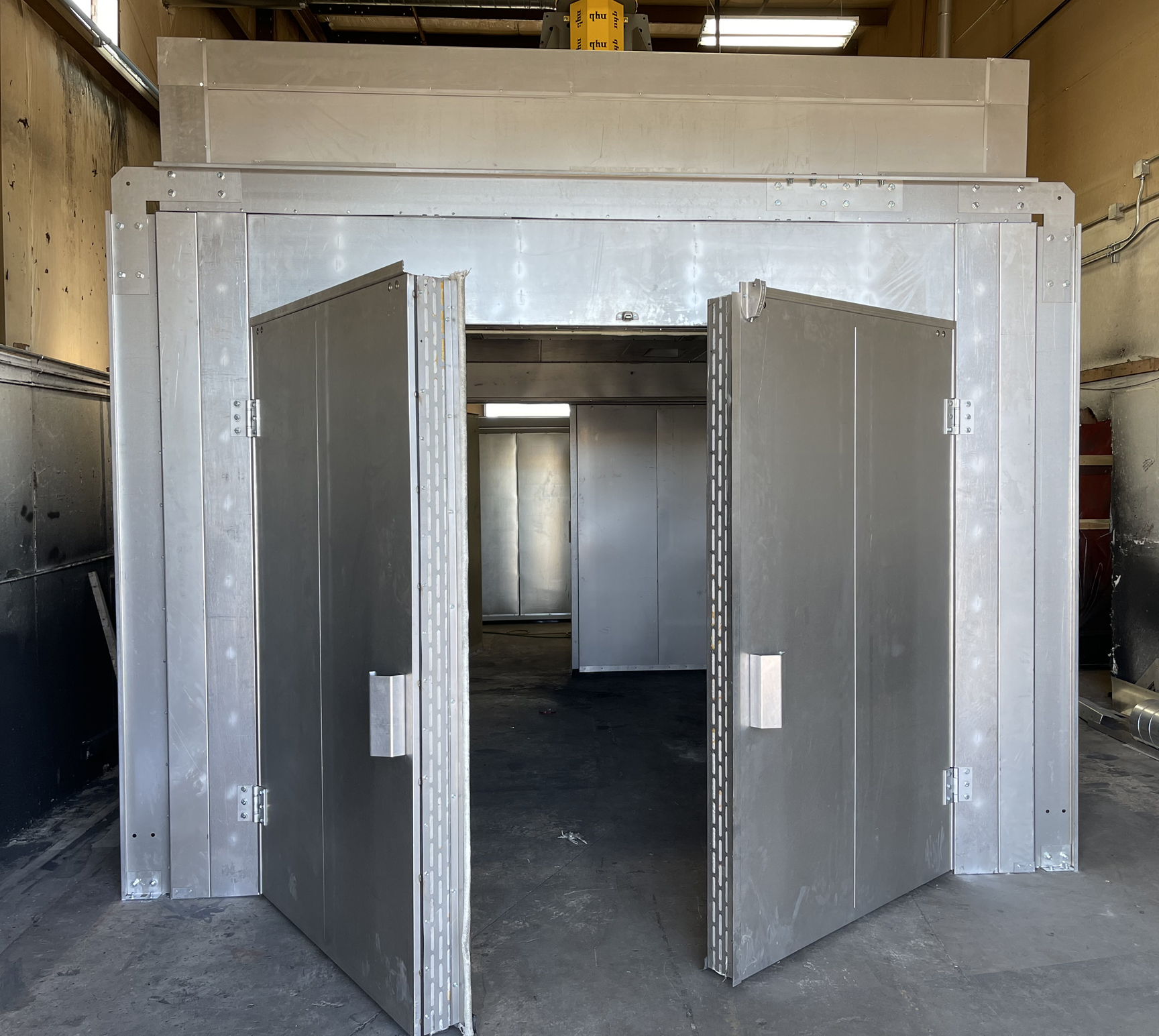

rohner-batch-oven3-1

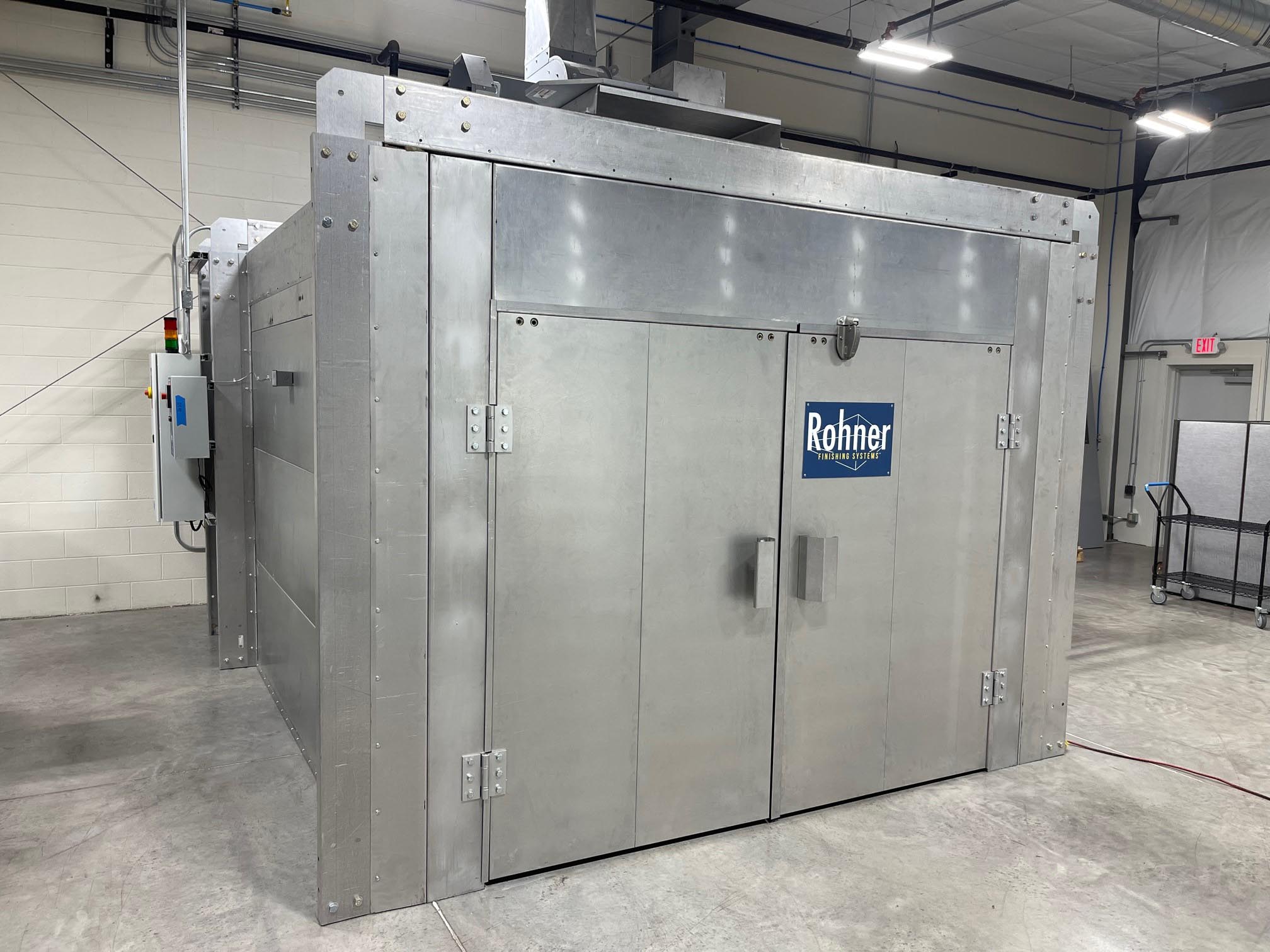

Rohner - Batch Oven
Rohner - Oven Heater Box
Rohner - Bifold Oven Doors
Rohner Batch Oven
rohner-batch-oven1-1
rohner-batch-oven222
rohner-batch-oven3-1
Rohner - Batch Oven
Rohner - Oven Heater Box
Rohner - Bifold Oven Doors

INDUSTRIES FOR BATCH OVENS

placeholder

Aerospace
& Defense
placeholder

Manufacturing
& Industrial
placeholder

Cerakote
placeholder

Transit Bus
& Rail
placeholder

Heavy Equipment
& Fleet Refinish
placeholder

Marine
placeholder

Gun Knife

SPECIFICATIONS FOR BATCH OVENS

Std. Opt Std. Opt
180°F - 500°F operating temp range • Plate steel insulated/uninsulated floor •
UL listed industrial PLC control panel with remote HMI operator station • Over header configurable for conveyor slots •
Top or Rear mount process heater configuration • Nut and bolt formed external structural support for easy oven cleaning, smooth interior •
Electronic ignition • Conveyor rail load capable structure •
25:1 Modulating burner • Dual entry (drive through) product doors •
TEFC premium efficiency 3-phase motors •

APPLICATIONS FOR BATCH OVENS

ARMAMENT COATING

ARMAMENT COATING

Rohner Batch Ovens are often used by armament coating shops for there capability to durably cure specialty and ceramic coatings.

HIGH-TEMP EXHAUST COATING

HIGH-TEMP EXHAUST COATING

With the capability to cure at 500° Rohner Batch Ovens are an efficient choice for exhaust coating.

DRUM & BARREL COATING

DRUM & BARREL COATING

Rohner's custom air movement options and exhaust capability to cure liquid coatings are a great choice for coating Drum and Barrels.

SIZING FOR BATCH OVENS

Rear Mount Top Mount Burner Size (kBTU) Recirc. Fan (CFM) Recirc. Fan (HP) Exh. Fan (CFM) Exh. Fan (HP)
MODEL W H D W H D H D
BOHT-5-7-8 5'-0" 7'-0" 8'-0" 7'-8" 8'-4" 13'-4" 12'-6" 9'-0" 500 1800 2 700 0.5
BOHT-5-7-12 5'-0" 7'-0" 12'-0" 7'-8" 8'-4" 17'-8" 12'-10" 13'-0" 500 3600 3 900 0.5
BOHT-6-7-8 6'-0" 7'-0" 8'-0" 8'-8" 8'-4" 13'-8" 12'-10" 9'-0" 500 3600 3 800 0.5
BOHT-6-7-12 6'-0" 7'-0" 12'-0" 8'-8" 8'-4" 17'-8" 12'-10" 13'-0" 1000 5200 5 1000 0.5
BOHT-8-8-8 8'-0" 8'-0" 8'-0" 10'-8" 9'-4" 113'-8" 13'-10" 9'-0" 1000 5200 5 1100 0.5
BOHT-8-8-12 8'-0" 8'-0" 12'-0" 10'-8" 9'-4" 17'-8" 13'-10" 13'-0" 1000 6400 5 1500 0.75
BOHT-8-8-20 8'-0" 8'-0" 20'-0" 10'-8" 9'-4" 26'-5" 14'-7" 21'-0" 1500 12000 10 2200 1.5
BOHT-8-10-10 8'-0" 10'-0" 10'-0" 10'-8" 11'-4" 15'-8" 15'-10" 11'-0" 1000 6400 5 1600 0.75
BOHT-8-10-14 8'-0" 10'-0" 14'-0" 10'-8" 11'-4" 20'-1" 16'-3" 15'-0" 1500 9600 10 2000 1.5
BOHT-8-10-20 8'-0" 10'-0" 20'-0" 10'-8" 11'-4" 26'-5" 16'-7" 21'-0" 1500 14000 10 2700 3
BOHT-10-10-10 10'-0" 10'-0" 10'-0" 13'-2" 11'-4" 16'-3" 16'-3" 11'-0" 1500 9600 10 1800 0.75
BOHT-10-10-20 10'-0" 10'-0" 20'-0" 13'-2" 11'-4" 27'-0" 17'-0" 21'-0" 2000 20000 20 3300 3
BOHT-10-10-30 10'-0" 10'-0" 30'-0" 13'-2" 11'-4" 37'-0" 17'-0" 31'-0" 2000 24000 25 3700 3
BOHT-12-12-12 12'-0" 12'-0" 12'-0" 15'-2" 13'-4" 18'-7" 18'-7" 13'-0" 1500 14000 10 2800 2
BOHT-12-12-20 12'-0" 12'-0" 20'-0" 15'-2" 13'-4" 27'-0" 19'-0" 21'-0" 2000 20000 20 3300 3
BOHT-12-12-30 12'-0" 12'-0" 30'-0" 15'-2" 13'-4" 37'-0" 19'-0" 31'-0" 2000 24000 25 3700 3
GET A QUOTE

A single 800° Class II industrial plug-blower provides circulation and combustion air resulting in reduced energy and maintenance costs. Rohner Batch Ovens are designed to meet or exceed NFPA86 standards, and their gas trains meet FM insurance requirements. Consult your local authority having jurisdiction for additional requirements before purchasing.

For more information on the standard features, models and dimensions, operator controls, and available options of our Batch Ovens, Paint Booth Ovens, Powder Coating Booths and Ovens, please download the Batch Ovens (High Temperature) Brochure or contact Rohner and someone on our staff will help.

rohner-batch-oven
rohner-batch-oven
rohner-batch-oven22
