Industrial Air Make-Up Units
Rohner Heated Makeup Air Units, or MAUs, are designed to meet your most demanding finishing and refinishing requirements, seamlessly integrate or retrofit with any of our Rohner Paint Spray Booths, and can be used for building makeup air where multiple booth/process applications are occurring. Rohner Heated Makeup Air Units are available in horizontal or vertical configurations, with optional weather-proof construction for outdoor installation, and can be outfitted for reduced or recycled air for bake applications.
STANDARD FEATURES PROVIDED IN ROHNER AIR MAKE-UP UNITS INCLUDE:
- ETL listed, and designed to ANSI Z83. 18 standards
- Natural gas or propane fired trough burners with 100% combustion and 92% thermal efficiencies
- Air deliveries from 2,000 to 120,000 CFM
- Electronic modulating gas valve
- Heat input from 94 to 15,552 MBH
- Temperature rise 70-150°F
- Double centrifugal forward-curved Class I fans
- Motorized electric safety shut-off valve
- UL listed remote controls enclosed in a NEMA 12 cabinet
- One-year warranty
Rohner Paint Spray Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. View Requirements.update view requirements link
SPECIFICATIONS FOR DUST COLLECTORS
|Natural gas or propane fired trough burners with 100% combustion and 92% thermal efficiencies||•||UL listed remote controls enclosed in a NEMA 12 cabinet||•|
|Air deliveries from 2,000 to 120,000 CFM||•||Variable booth demands||•|
|Heat input from 94 to 15,552 MBH /td>||•||Temperature rise 70-150F°||•|
|Integrated system with garage doors||•||Recyclable air option for bake and cure processes||•|
|Double centrifugal forward-curved Class I fans||•||Electronic modulating gas valve||•|

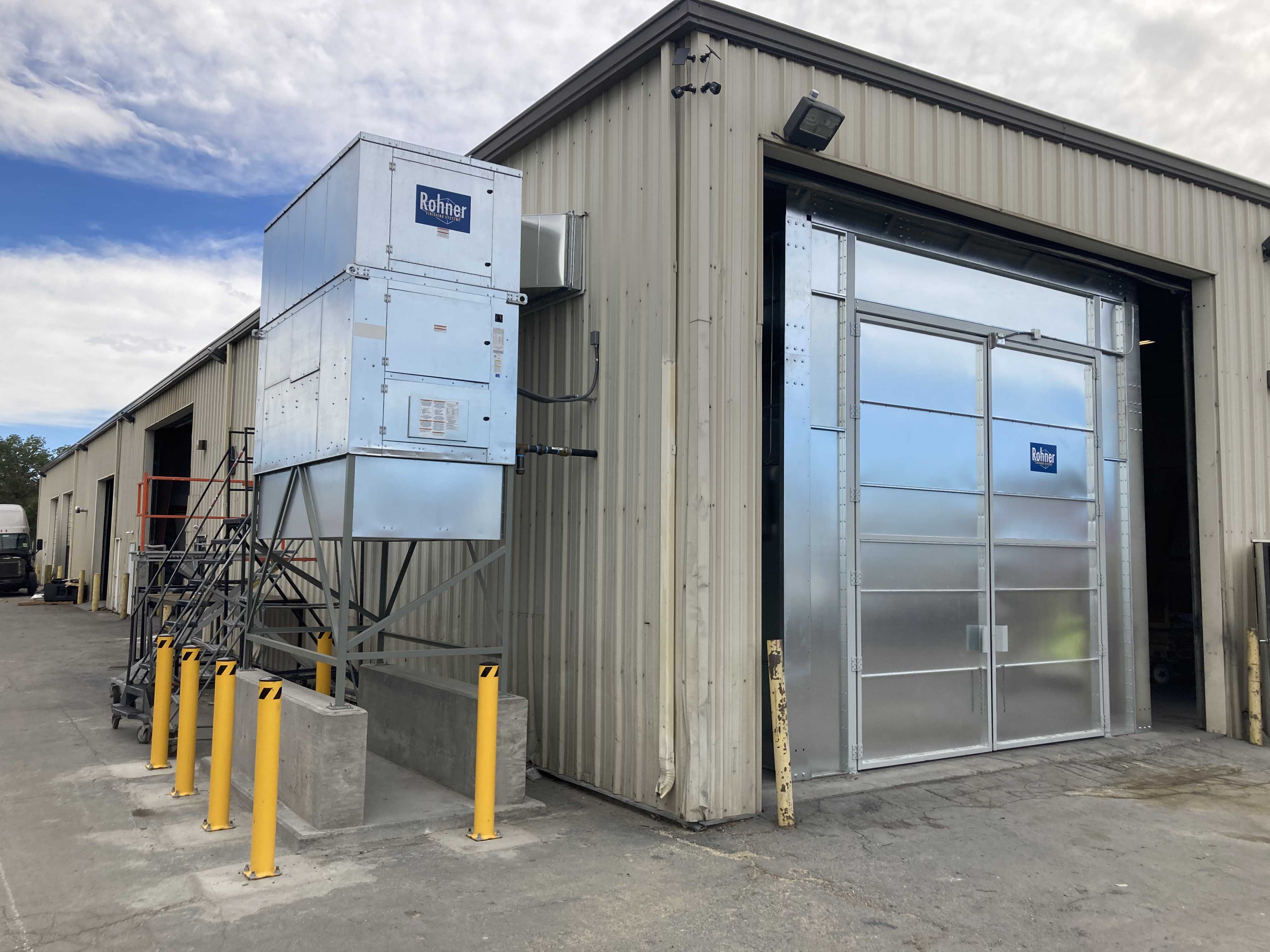

An Industrial Air Make-up Unit can be used to supply heated filtered air to a booth to assist in the bake and cure cycle.

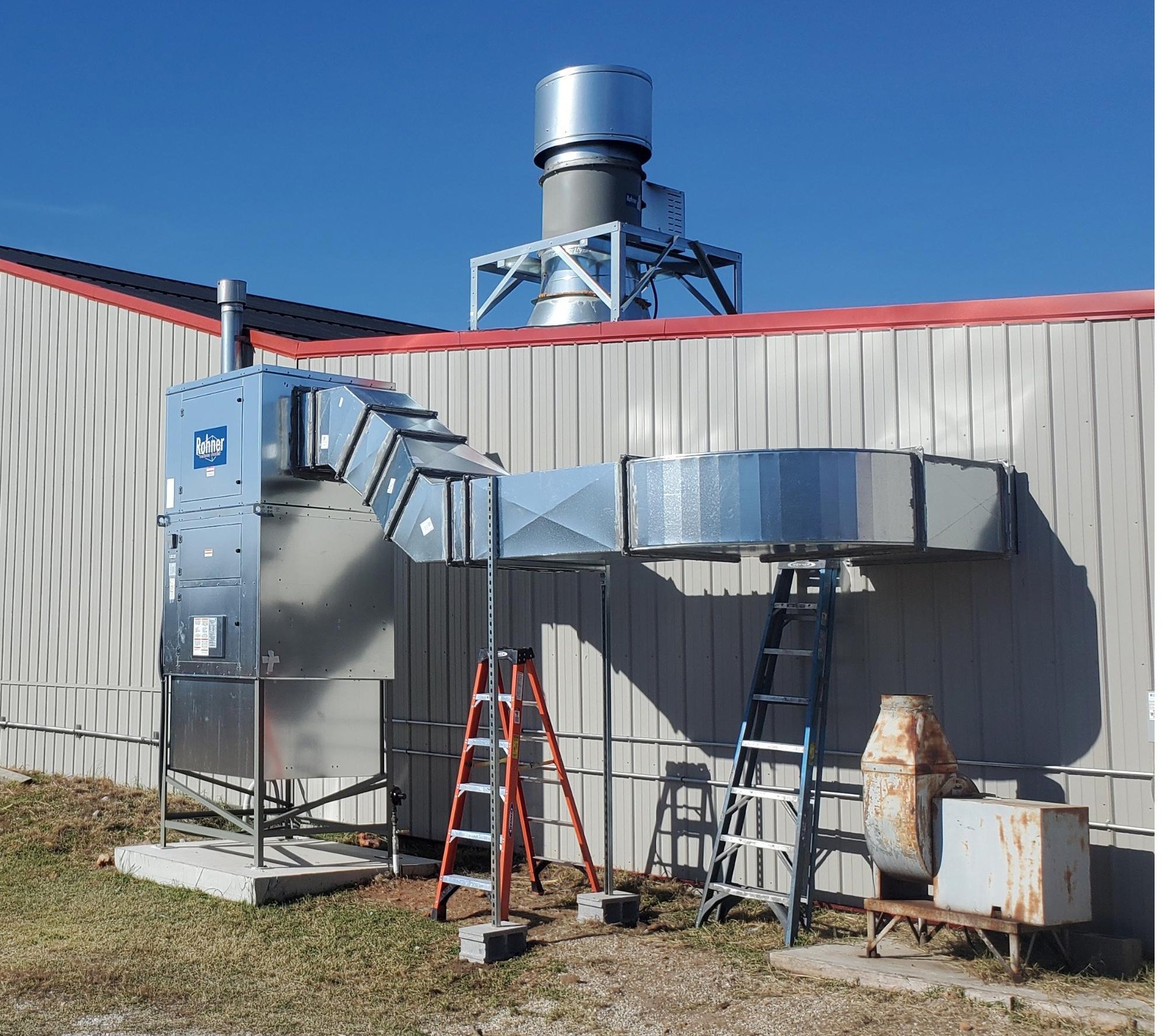

Industrial Air Make-up Units can be used within the facility and or building to provide heated filtered air to the large working area.

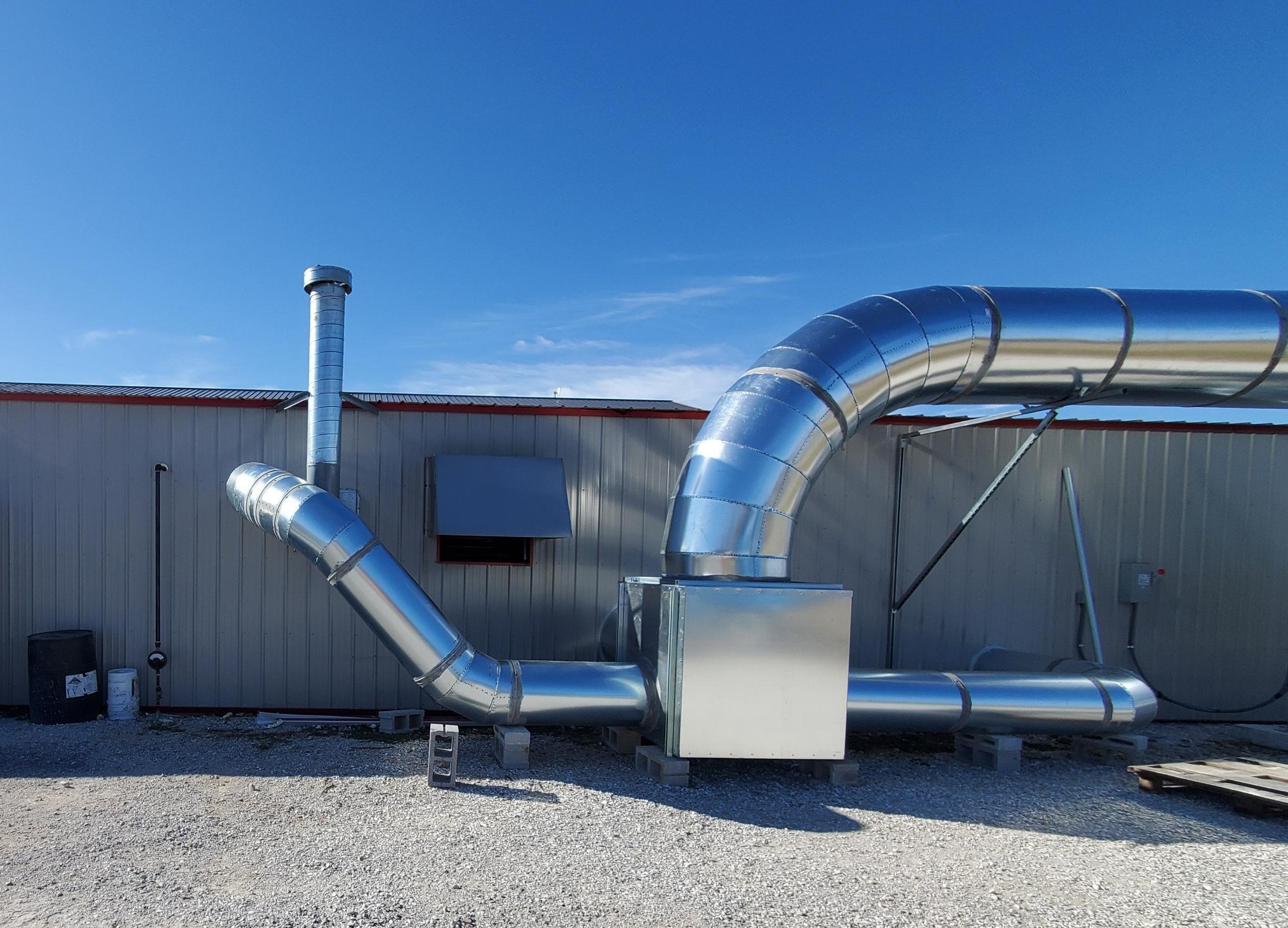

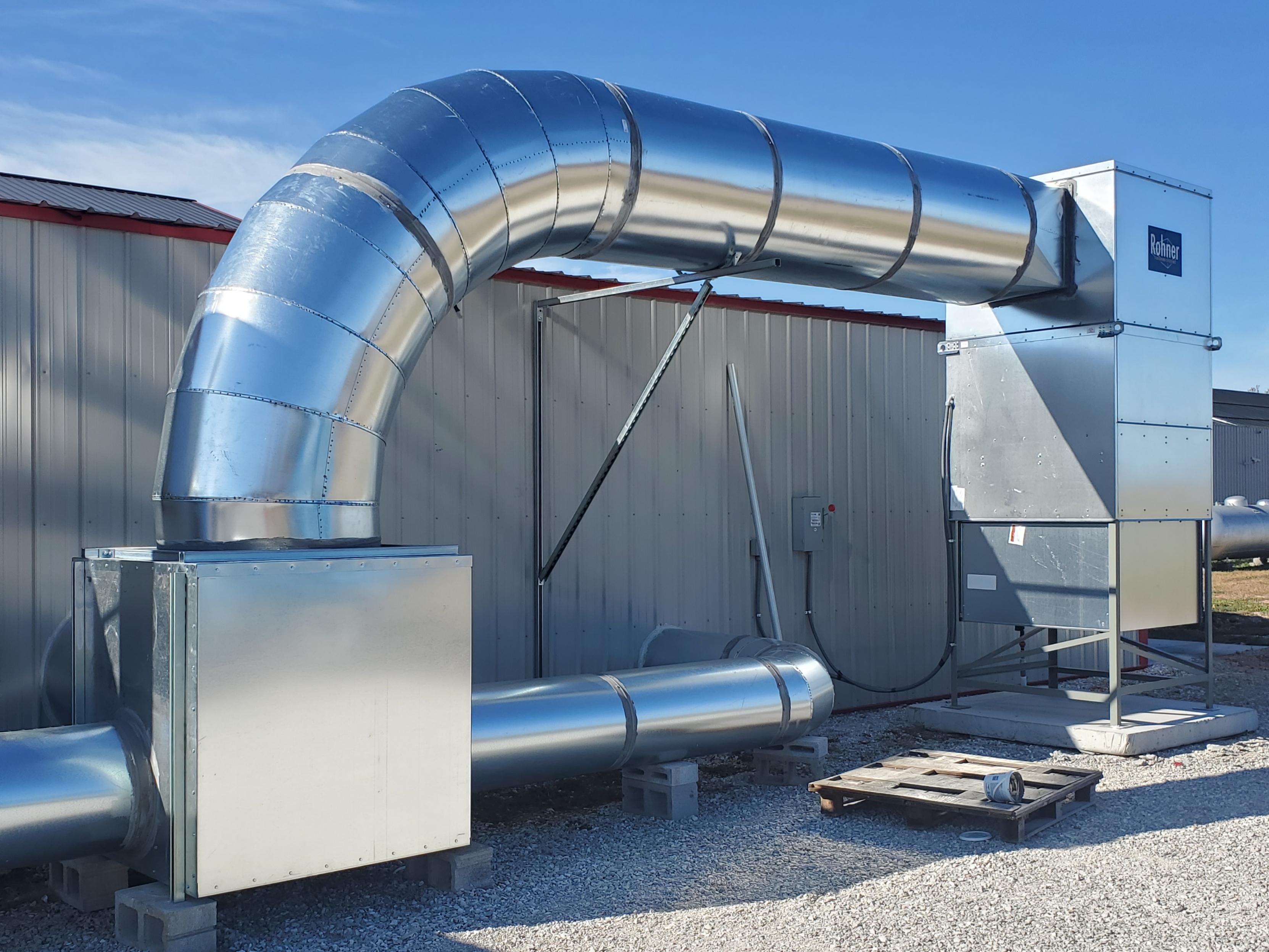

Industrial Air Make-up Units are an effective way to control the environment by supplying pressurized temperature controlled filtered air to a finishing area.
SIZING FOR CROSSDRAFT SPRAY BOOTHS
Rohner Heated Makeup Air Units are painted with a heat-resistant enamel finish, and are constructed as pre-assembled modular sections for easy field installation. Rohner MAU Operator Controls are UL 508 listed with a NEMA 12need link dust-tight enclosure.
For more information on the standard features and available options of our Makeup Air Units, please contact Rohner and someone on our staff will help.
