15 ft vertical part automated powder system.

Features:

  • 3-stage automated washer
  • Semi-automated part elevator/lowerator
  • Convection ovens with power air seals

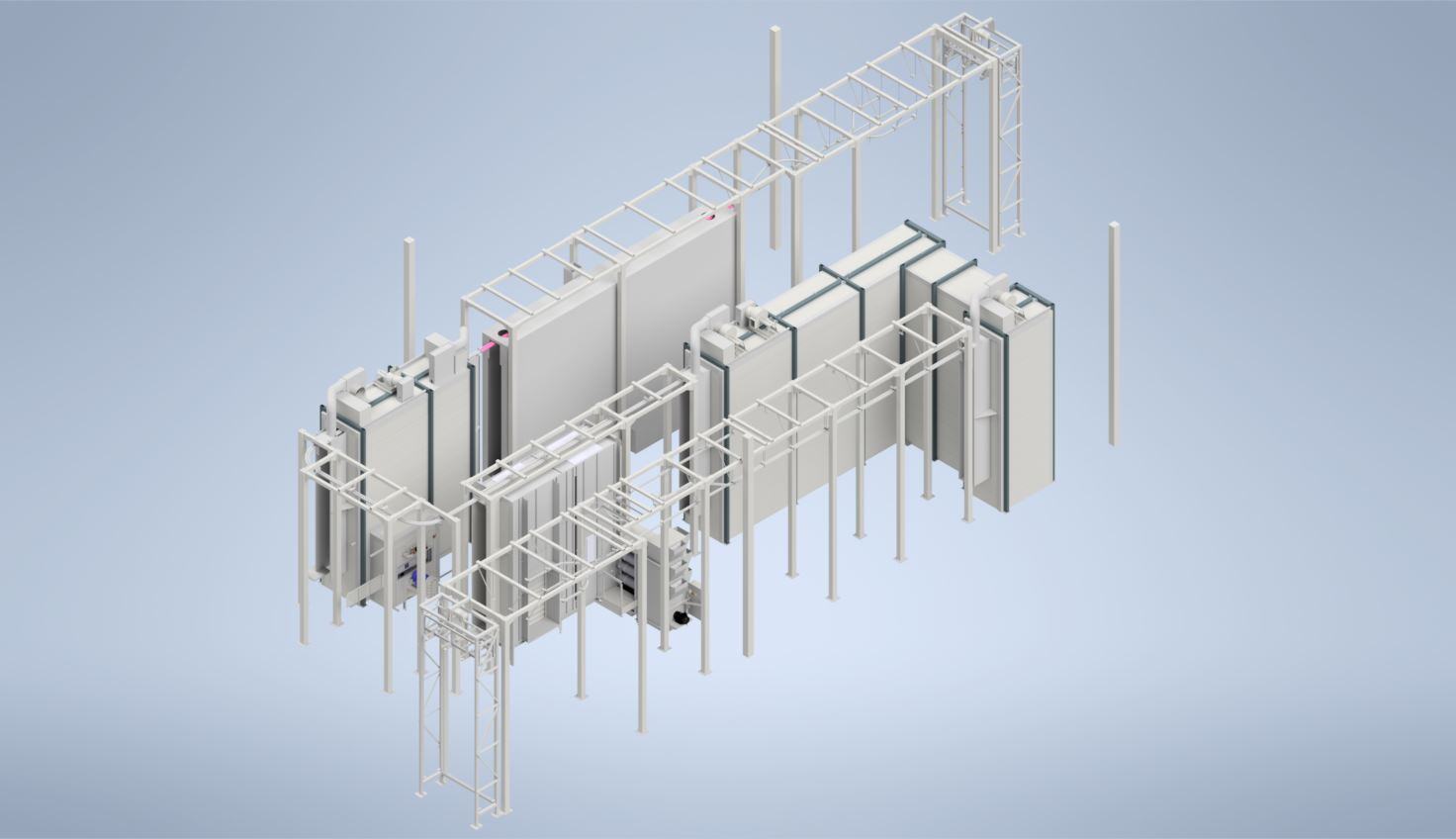

Powder System 1

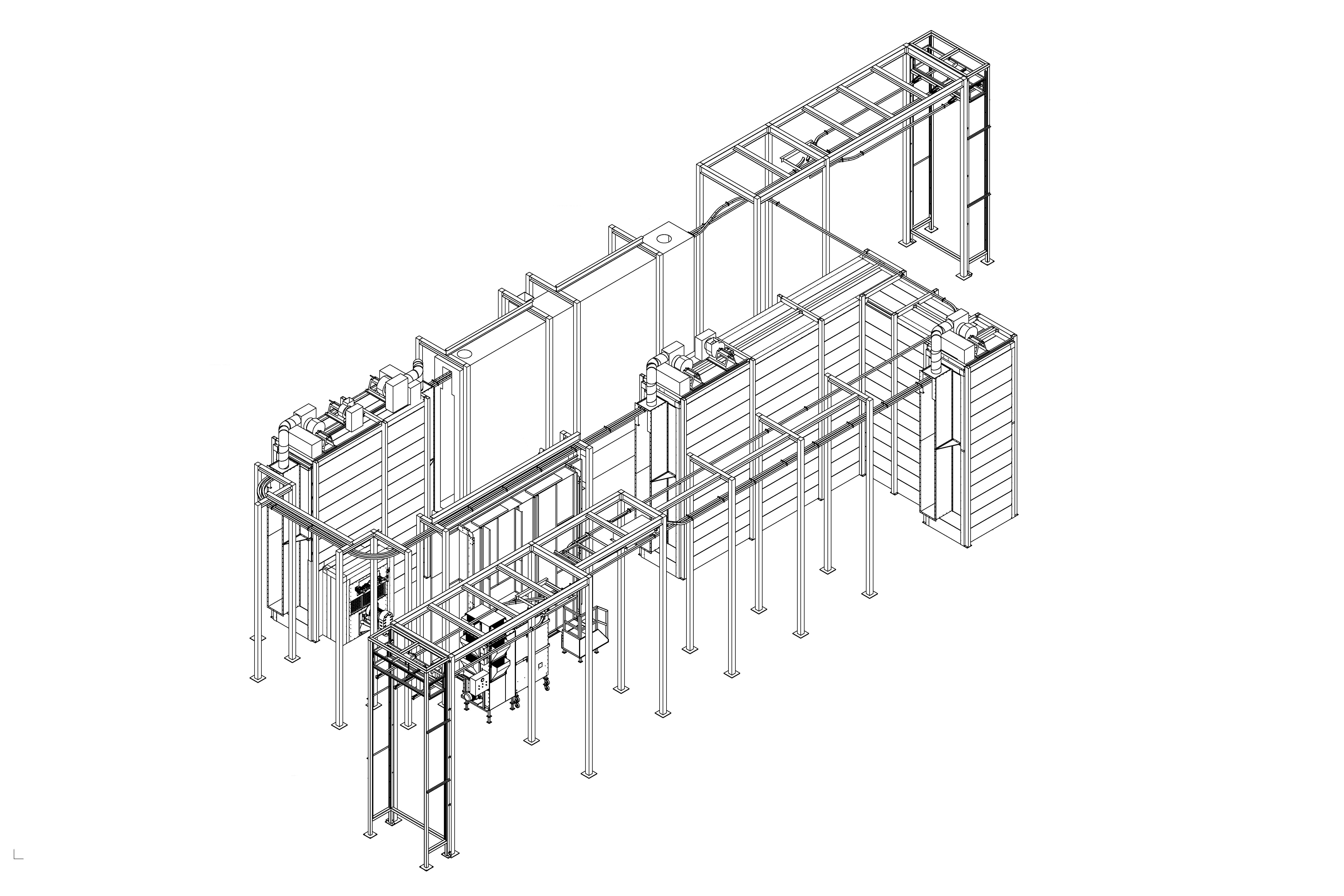

Powder System 2

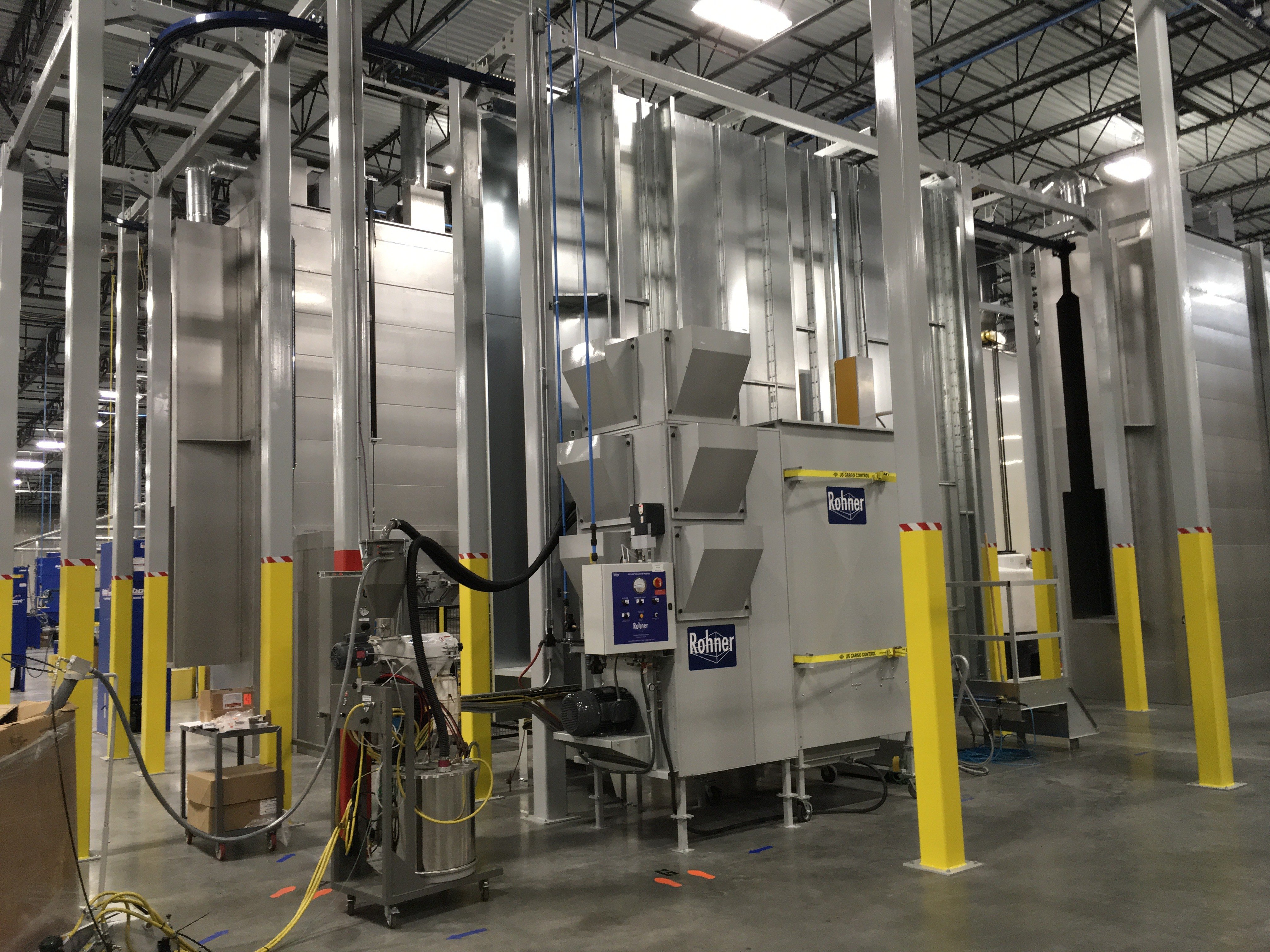

Powder system 3

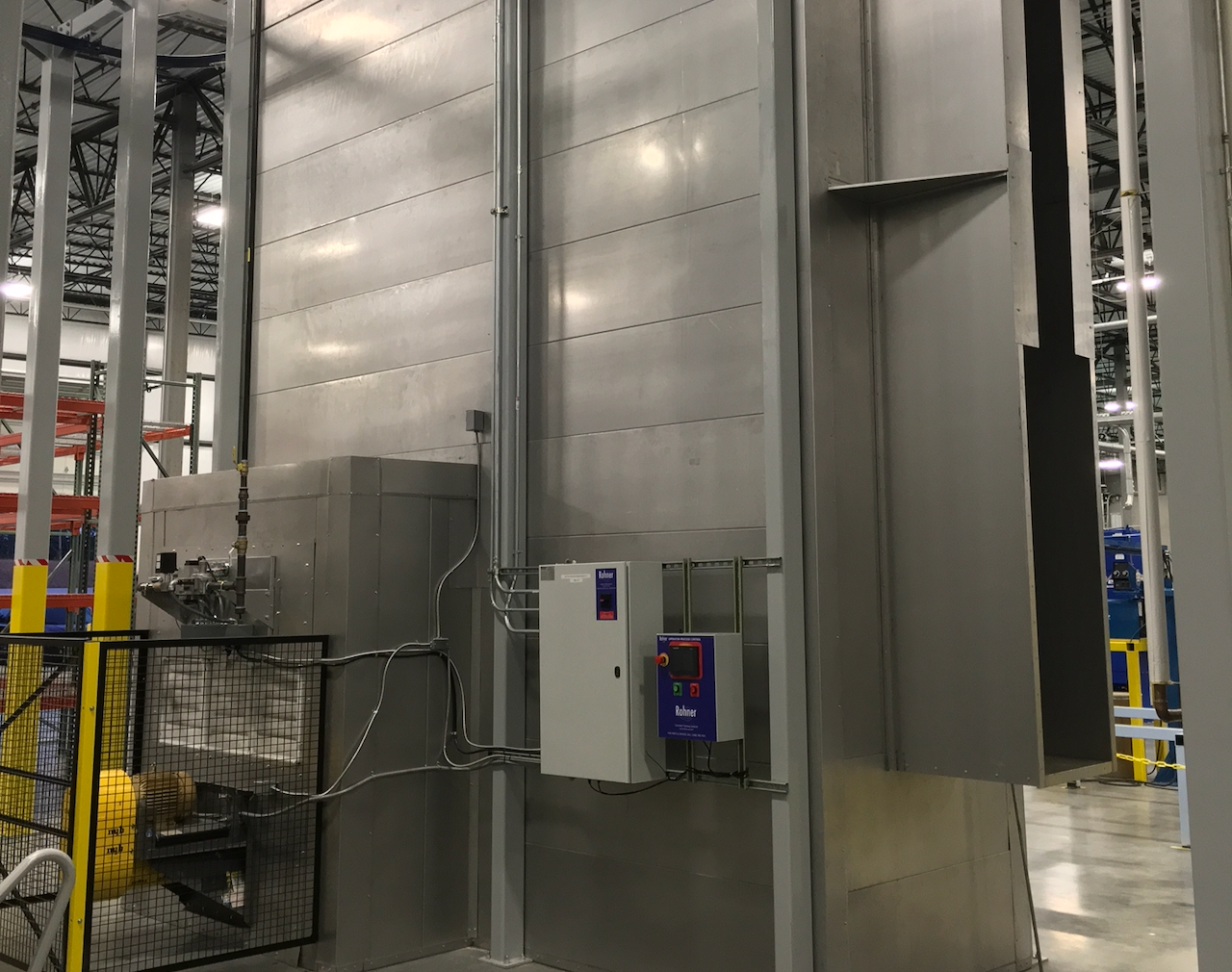

Powder system 4

SPECIFICATIONS FOR OPEN FACE SPRAY BOOTHS

Std. Opt Std. Opt
20" x 20" Exhaust filter frames with wire grids Energy efficient L.E.D. lighting
NESHAP compliant multi-stage filter system Quite mixed flow high performance exhaust fan
Blanket media track High static exhaust fan
Control Panel Filtered product doors
Filter Life Optimizer "FLO" Personnel exit door
Spark resistant tube axial fan with TEFC motor Powder coat white finish
Class I Div. II sealed inside access light fixtures with color correct lamps Conveyor portal openings with vestibules

APPLICATIONS FOR OPEN FACE SPRAY BOOTHS

Cabinet Shops

Cabinet Shops

Open face booths are a preferred choice for many cabinet shops as they provide space for a wide variety of products sizes and configurations

Facility Maintenance

Facility Maintenance

Many Facility maintenance shops find open face booths a necessary tool to keep their facility components in top condition.

General Industrial

General Industrial

Open face booths are the backbone of many industrial painting processes due to their low cost and flexibility.

SIZING FOR OPEN FACE SPRAY BOOTHS

MODEL W H D W H D Light Fixtures Exhaust Filters Exhaust Fan Sized at 125FPM @ 1/4" S.P.
IBB-RWP-3-4-2 3'-0" 4'-0" 2'-0" 3'-4" 7'-2" 3'-8" 0 4 18" 1/2hp- 1,600cfm
IBB-RWP-5-4-3 5'-0" 4'-0" 3'-0" 5'-4" 7'-2" 5'-2" 1 6 18" 1/2hp- 2,500cfm
IBB-RWP-7.5-4-3.5 8'-0" 4'-0" 4'-0" 8'-4" 7'-2" 6'-2" 1 8 18" 3/4hp- 4,000cfm
IOF- 8-7-7 8'-0" 7'-0" 7'-0.5" 8'-4" 7'-6" 9'-8.5" 1 16 24" 1.5hp- 7,000cfm
IOF-8-8-7 8'-0" 8'-0" 7'-0.5" 8'-4" 8'-6" 9'-8.5" 2 16 24" 1.5hp- 8,000cfm
IOF-RWP-10-7-7 10'-0" 7'-0" 7'-0.5" 11'-0" 7'-6" 10'-2.5" 2 20 30" 1.5hp- 8,750cfm
IOF-RWP-10-10-7 10'-0" 10'-0" 7'-0.5" 11'-0" 10'-6" 10'-8.5" 2 25 36" 1.5hp- 12,500cfm
IOF-RWP-12-8-7 12'-0" 8'-0" 7'-0.5" 13'-0" 8'-6" 10'-8.5" 2 28 36" 1.5hp- 12,000cfm
IOF-RWP-12-10-7 12'-0" 10'-0" 7'-0.5" 13'-0" 10'-6" 10'-8.5" 3 35 36" 3hp- 15,000cfm
IOF-RWP-14-8-7 14'-0" 8'-0" 7'-0.5" 15'-0" 8'-6" 10'-8.5" 2 32 36" 2hp- 14,000cfm
IOF-RWP-14-10-7 14'-0" 10'-0" 7'-0.5" 15'-0" 10'-6" 10'-8.5" 3 40 36" 3hp- 17,500cfm
IOF-RWP-14-12-7 14'-0" 12'-0" 7'-0.5" 15'-0" 12'-6" 11'-2.5" 3 48 42" 5hp- 21,000cfm
IOF-RWP-16-8-7 16'-0" 8'-0" 7'-0.5" 17'-0" 8'-6" 10'-8.5" 3 36 36" 3hp- 16,000cfm
IOF-RWP-16-10-7 16'-0" 10'-0" 7'-0.5" 17'-0" 10'-6" 11'-2.5" 3 45 42" 5hp- 20,000cfm
IOF-RWP-16-12-7 16'-0" 12'-0" 7'-0.5" 17'-0" 12'-6" 11'-2.5" 4 54 42" 5hp- 24,000cfm
IOF-RWP-18-10-7 18'-0" 10'-0" 7'-0.5" 19'-4" 10'-8" 11'-2.5" 4 50 42" 5hp- 22,500cfm
IOF-RWP-18-12-7 18'-0" 12'-0" 7'-0.5" 19'-4" 10'-8" 11'-8.5" 4 60 48" 5hp- 27,000cfm
IOF-RWP-20-10-7 20'-0" 10'-0" 7'-0.5" 21'-4" 10'-8" 11'-2.5" 4 55 42" 7.5hp- 25,000cfm
IOF-RWP-20-12-7 20'-0" 12'-0" 7'-0.5" 21'-4" 12'-8" 11'-8.5" 5 66 48" 7.5hp- 30,000cfm
GET A QUOTE

Preconfigured control packages reduce install cost and are simple to use on all our Open Paint Booths. Optional controls upgrades can be added to extend filter life and reduce energy consumption. AMCA certified fans with EPACT compliant TEFC motors are standard. Fans have remote bearing lubrication, aluminum spark resistant blades and heavy duty powder coated housings. Rohner Paint Spray Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. Consult your local authority having jurisdiction for additional requirements before purchasing.

For more information on the standard features, Rohner Open Spray Booths for sale, use of open face industrial paint booths, a listing of models and dimensions, and available options of our Open Face Paint Spray Booths, please download the Open Face Spray Booths Brochure or contact Rohner and someone on our staff will help.
